splotRF

Key Features:
• plots .snp format s-parameter touchstone data
• stability circles for load and source
• µ and µ' for load and source stability
• interactive data markers
• overlay multiple trace data on a single plot
• overlay trace data from multiple files
• view data as a table list
• arbitrary number of ports (.s1p, .s2p, s3p…snp support)
• S/Y/Z matrix conversion
• mA/RI/dB formatting
• interpolation over frequency
• exports vector graphics to .pdf
• plotting display properties and configuration are saved within file comments
• automated grid layout

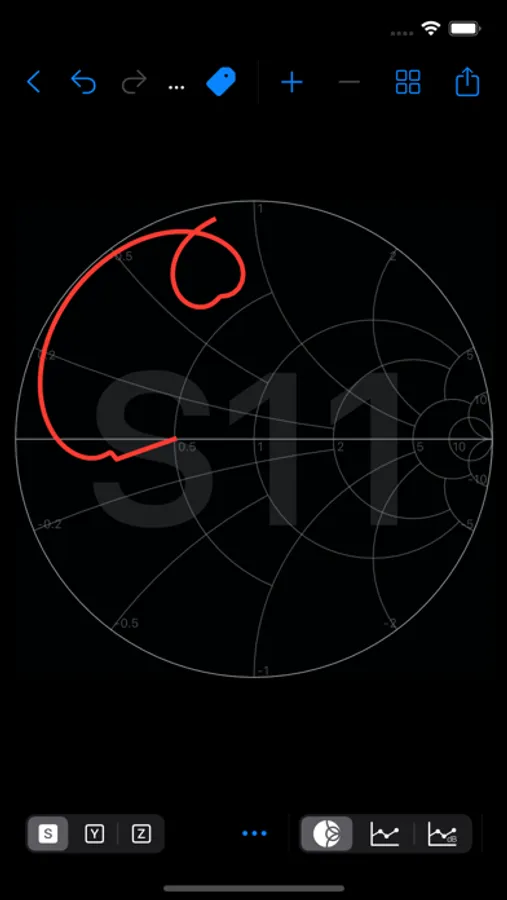

• Smith Chart, Polar and Rectangular plots
• reads and plots .zip archives containing s-parameter data
